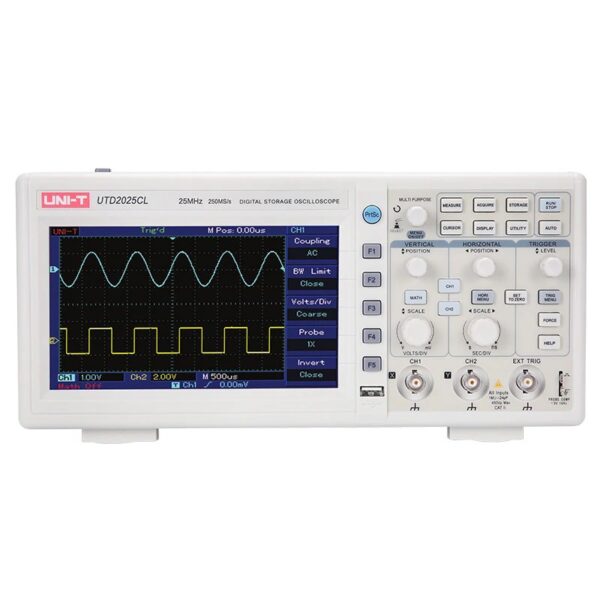

Digital Dual Channel Oscilloscope

UTD2025CL/UTD2052CL series is an economical bench-type digital storage oscilloscope, meeting needs of basic measurements. The simple and clear front panel design provides convenient operations for users.

SKU: jeco-022 Categories: ,

UTD2025CL/UTD2052CL series is an economical bench-type digital storage oscilloscope, meeting needs of basic measurements. The simple and clear front panel design provides convenient operations for users.

Main Features:

Specifications
Model UTD2025CL UTD2052CL
Bandwidth 25MHz 50MHz
Channels

2

Sampling rate 250MS/s 500MS/s
Rise time ≤14ns ≤7ns
Memory depth 25kpts
Waveform capture rate ≥2000wfms/s
Vertical sensitivity (V/div) 1mV/div〜20V/div
Time base range (s/div) 10ns/div〜50s/div 5ns/div〜50s/div
